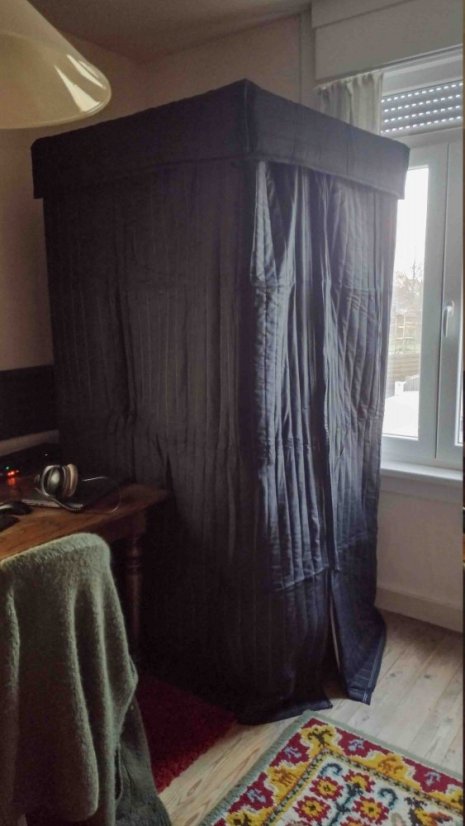

EchoFree 100 acoustic vocal booth - 100x100x200cm - 1300g/m2, eliminates reverberation, tube steel frame

Video review of EchoFree 100 acoustic Vocal Booth

Testimonial of acoustic material used, for this VocalBooth

Since I have been using your acoustic blankets, the sound is much better than using the Whisper Room (a brand of soundproof acoustic booth that costs thousands of dollars). Acoustic blankets provide the clearest professional sound possible. The noise level in the studio is now only around -73 dB and thanks to VocalBoothToGo.EU I absolutely do not need to equalize the sound any further. I don't have a box sound like the Whisper Room or VicBooth users have in their recordings, but a nice thick and warm sound.

I have recommended you to some of my friends who are having problems with their professional vocal booths, so that they can try the blankets.

Summary of product features - see below for individual details.

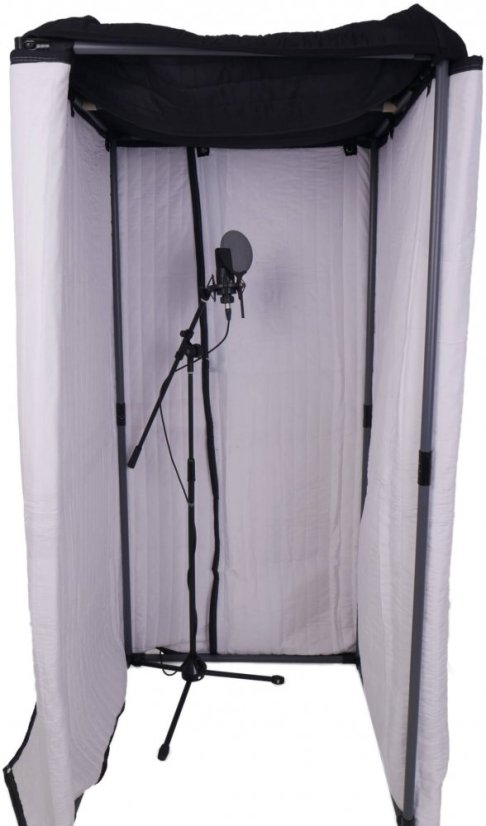

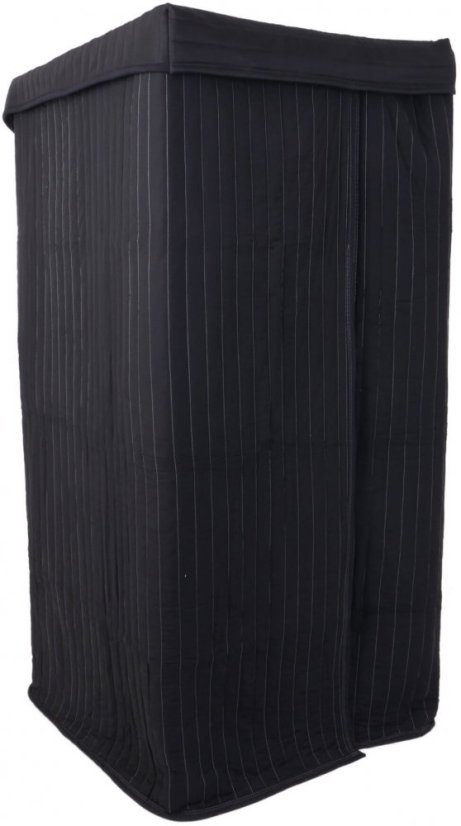

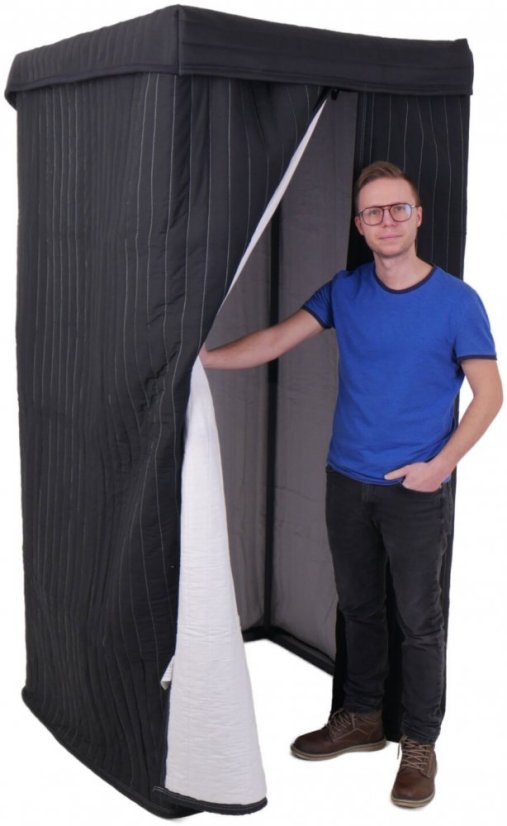

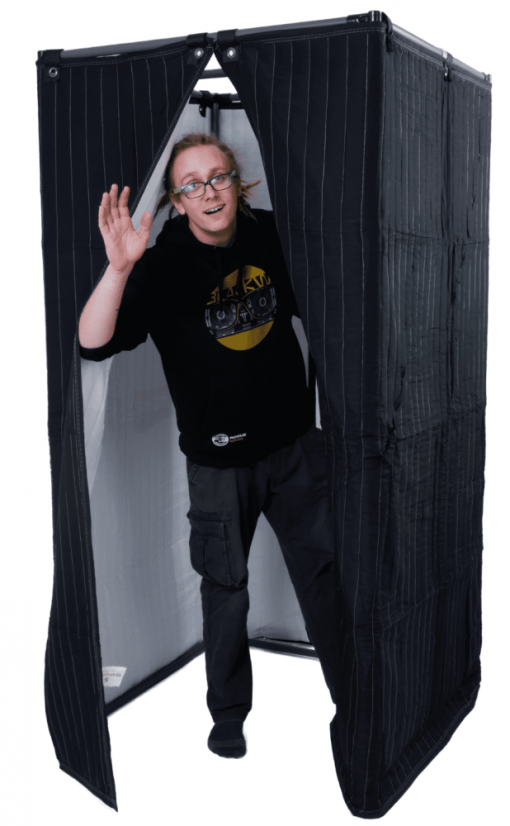

This set contains everything you need to build a complete acoustic cabin of 100x100x200cm.

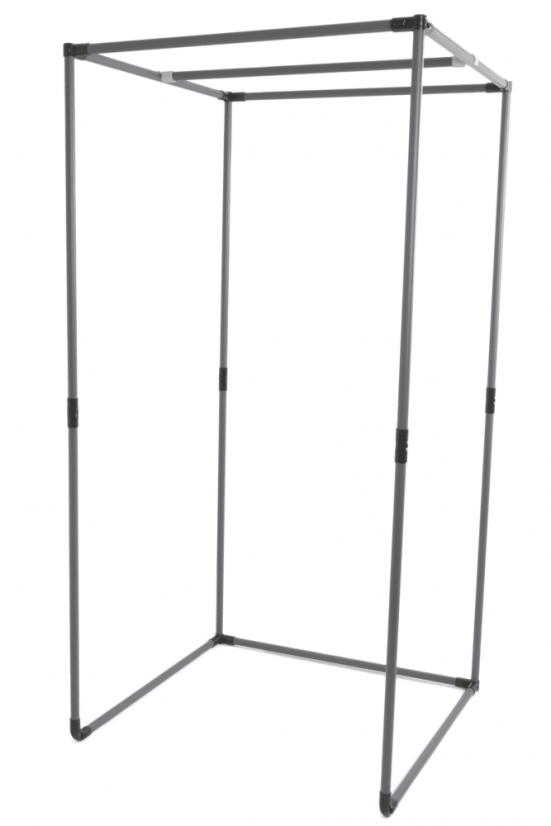

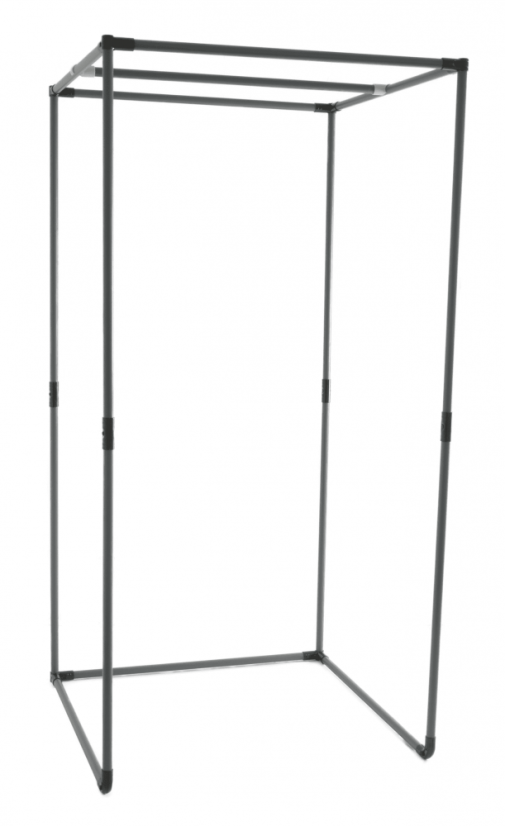

The cabin is of tubular construction, connected by metal couplings. Thanks to this, you can assemble it in 10 to 15 minutes and, if necessary, you can just as quickly disassemble it and put it away in a corner or take it with you wherever you need to go. The longest pipes in the package are only 100 cm long and are again connected to the longer ones with metal couplings.

Assembling

The used uniform size of the screws will make it easy to assemble the entire structure - you only need one Hex key, which is included in the package and you can start assembling immediately after unpacking.

Pipes

Metal thin-walled pipes Ø 28 mm coated with synthetic resin guarantee strength and premium appearance.
The pipes are surprisingly non-slip during installation thanks to the resin they are coated with.
You will appreciate that they do not get cold in the hand and are not heavy.

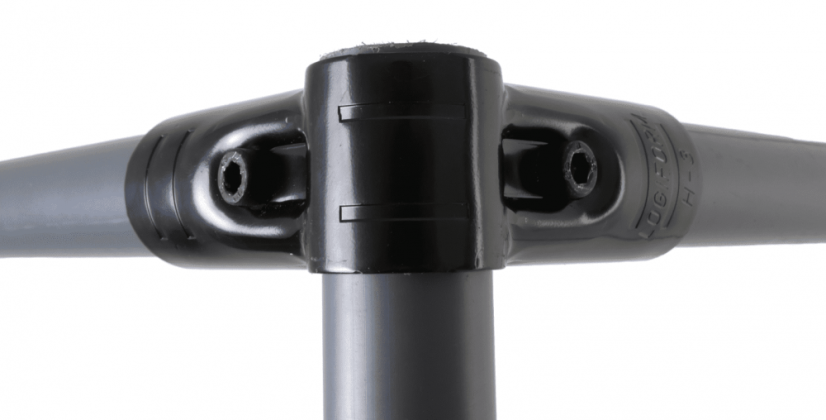

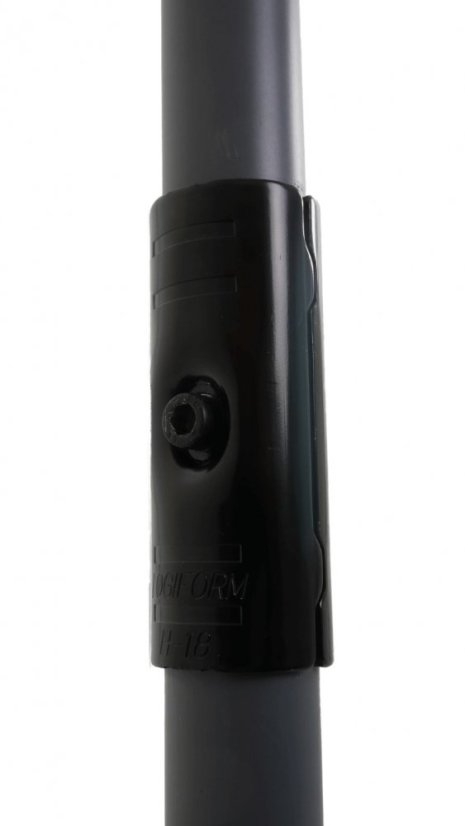

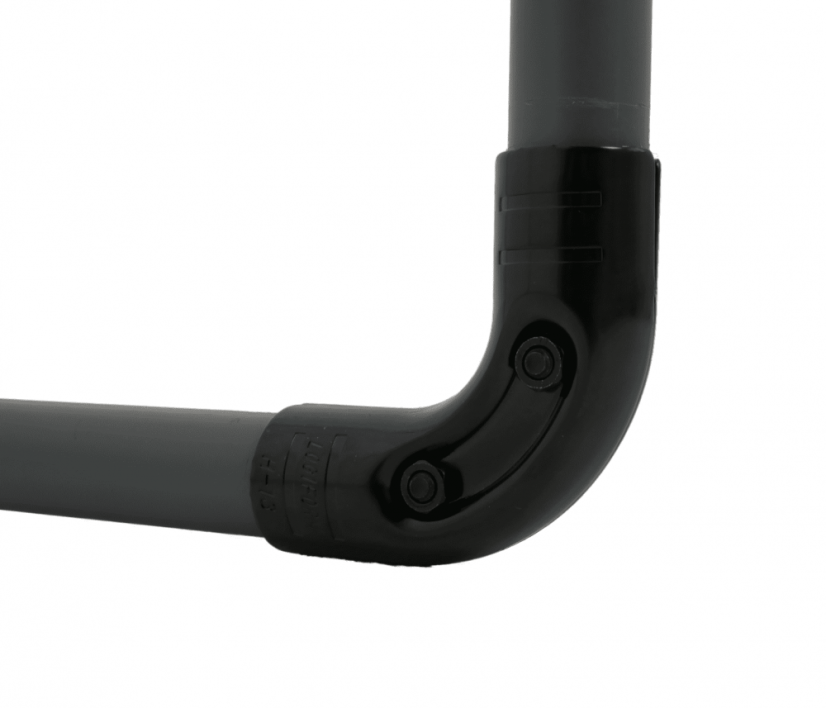

Pipe coupling

The couplings have excellent workmanship.
They are black color and fit perfectly with the pipes, so assembly of the whole construction is very simple and can be done by one person without help.
The bolts and nuts are color-matched to the couplings.

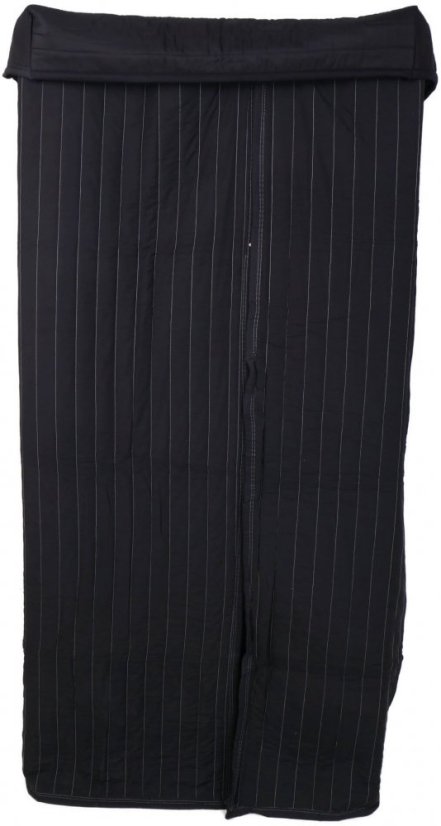

Acoustic blankets included

Dear customers, the blankets are included in the package, so you don't have to search for them on our website and think if you have put the right type and if there are enough blankets. This is the SB-VG model in two pieces.;

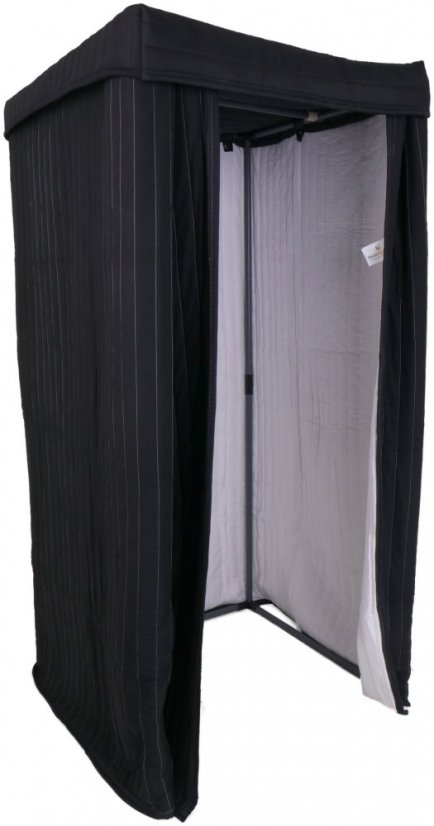

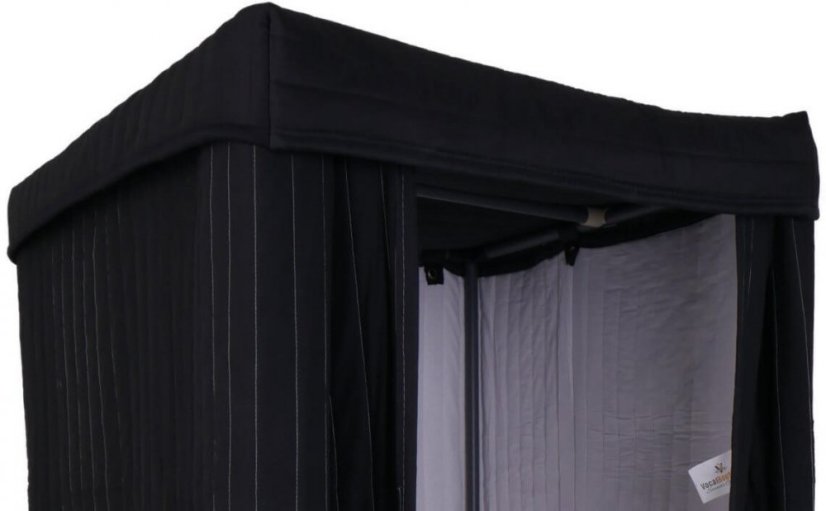

Tailor-made roof

In the package you will also find a perfectly fitting roof that fits exactly on the acoustic booth frame. Once fitted, you will achieve perfect acoustics inside the Vocal booth. We have it stitched by us in the Czech Republic.

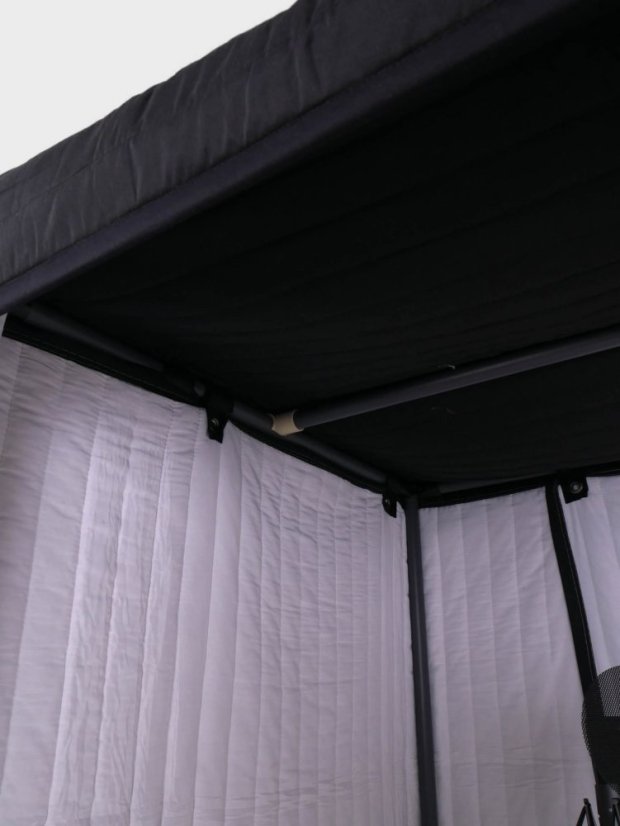

More headroom

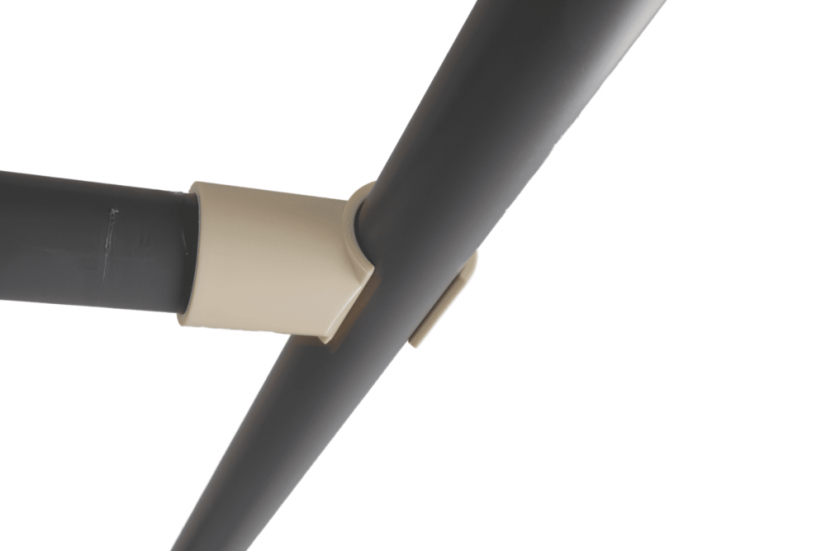

To keep the vocal booth roof from falling in, we've added a black stripe to hold the roof. The sound blanket on the top is thus sufficiently supported and you have more headroom. And when packing, we add assembly instructions (by email).

Sound absorption

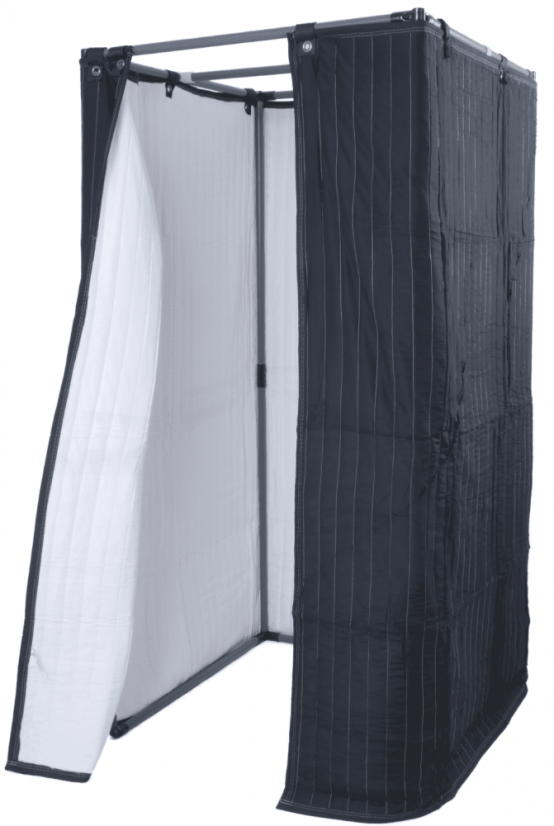

The walls of the EchoFree booth are made of VocalBoothToGo acoustic blankets, which absorb sound instead of reflecting it. There is no echo or reverberation inside the booth, so recordings sound clean, without the “boxy” sound.

αw = 0.75. Laboratory measurement of the wall material in a reverberation room showed that from 500 Hz upwards it absorbs over 85 % of the sound that hits it, right in the range of the human voice. According to the European standard EN ISO 11654 this gives a weighted sound absorption coefficient of αw = 0.75, which lets you compare the booth easily with other products.

How much it absorbs in the bass: 100 Hz 4 % · 125 Hz 13 % · 160 Hz 22 % · 200 Hz 30 % · 250 Hz 44 % · 315 Hz 58 % · 400 Hz 71 % · from 500 Hz over 85 %.

The full laboratory report and the αw calculation are in the article EchoFree certificate.

Soundproofing vs. Sound absorption

The structure fitted with the recommended blankets absorbs sound.
This creates the ideal acoustic conditions inside the vocal booth for your recording.
That doesn't mean you wouldn't be heard, the sound blankets absorb a lot of sound, but they are not "soundproof", so some of your voice or music instrument will be heard outside od sound booth

If you need a soundproof Vocal booth, you can find here: Mobile SoundProof Sound Booth - Solo (SPB33)

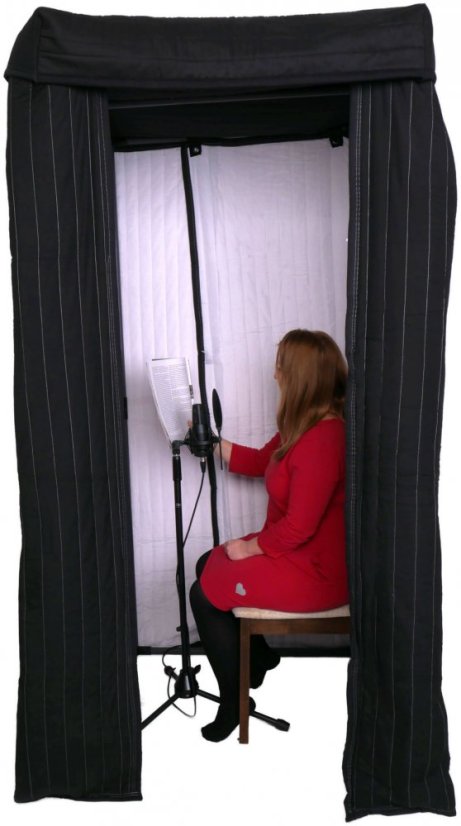

Improve acoustics when recording with a microphone

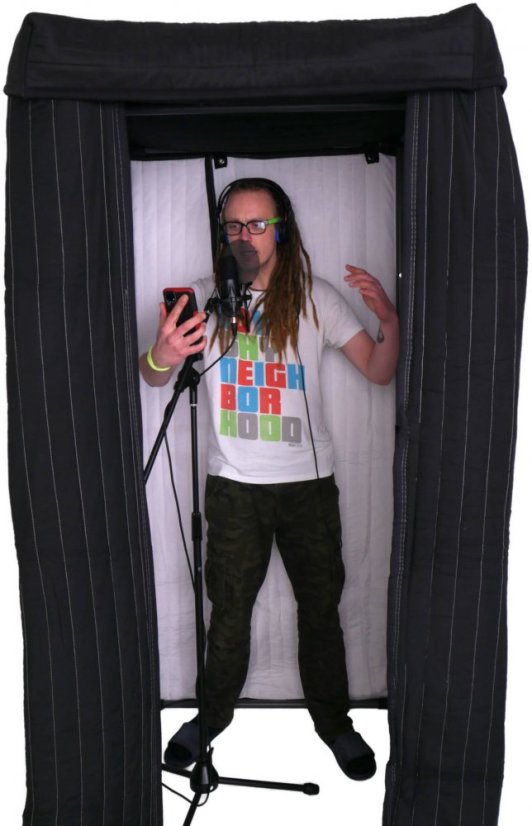

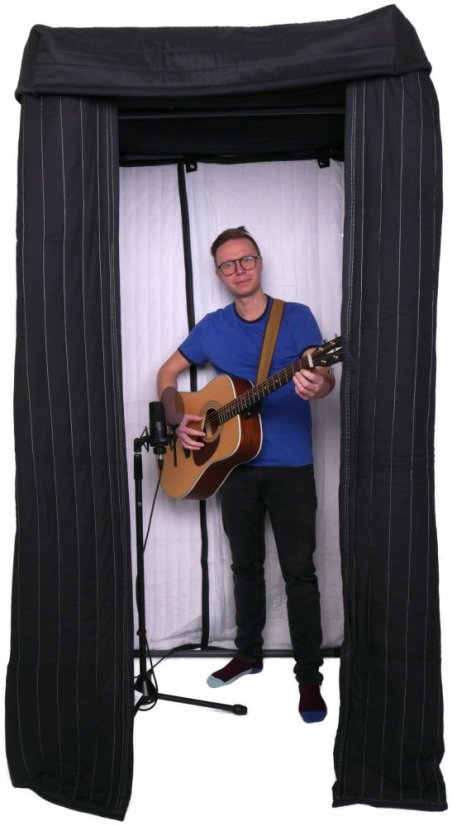

You can have better acoustics or a clearer recording. Use the complete acoustic booth to record vocals, dubbing, audio books, beat-boxing or rap. You can equally use it to record guitar combos or musical instruments such as strings, brass and percussion.

Technical specifications

• Weight with sound blankets: 23,00 Kg
• Weight of complete frame only: 12,55 Kg
• Dimensions: 202x95x95 cm (HxWxD)
• Material Pipes: Thin-walled steel Ø 28 mm (surface coated with synthetic resin)
• Material Couplings: metal
• Blanket material: cotton/polyester blend
• Pipes color: Grey
• Couplings color: black
• Blankets color: one side black, the other white.

Package contents

• 2x - SB-VG VocalBoothToGo sound blanket
• 1x - Premium Acoustic Roof (customized)
• 6x - thin walled pipe 100 cm
• 2x - thin walled pipe  95 cm
• 7x - thin walled pipe  85 cm
• 12x - "T" corner coupling
• 4x - „L“ corner coupling
• 8x - „I“ coupling
• 1x - Hex key
• 1x black stripe
